| View Issue Details [ Jump to Notes ] | [ Issue History ] [ Print ] | ||||||||||
| ID | Project | Category | View Status | Date Submitted | Last Update | ||||||
| 0001868 | PacketFence | configuration | public | 2015-02-17 22:47 | 2015-02-18 10:24 | ||||||
| Reporter | ah27 | ||||||||||
| Assigned To | jsemaan.inverse | ||||||||||
| Priority | normal | Severity | feature | Reproducibility | always | ||||||
| Status | assigned | Resolution | open | ||||||||
| Platform | Linux | OS | RHEL / CentOS | OS Version | 6 | ||||||
| Product Version | 4.5.0 | ||||||||||
| Target Version | Fixed in Version | ||||||||||
| Summary | 0001868: Netgear M Series module does not handle up/down SNMP traps | ||||||||||
| Description | There is no handling of up/down traps on the Netgear M Series module. When it receives the trap, the following is written to the log: Feb 17 19:33:29 pfsetvlan(12) WARN: SNMP trap handling not implemented for this type of switch. (pf::Switch::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 670. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string ne at /usr/local/pf/sbin/pfsetvlan line 678. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 689. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 698. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 703. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 703. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 709. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 713. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 716. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 719. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $switch_port in concatenation (.) or string at /usr/local/pf/sbin/pfsetvlan line 729. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(12) ERROR: Use of uninitialized value $trapType in concatenation (.) or string at /usr/local/pf/sbin/pfsetvlan line 729. (main::parseTrap) Feb 17 19:33:29 pfsetvlan(1) WARN: unable to parse trapLine.. here's the line: 10.100.6.30||||||||| (main::startTrapHandlers) Feb 17 19:33:29 pfsetvlan(1) INFO: nb of items in queue: 1; nb of threads running: 0 (main::startTrapHandlers) Feb 17 19:33:29 pfsetvlan(1) ERROR: Use of uninitialized value $ifType in numeric eq (==) at /usr/local/pf/lib/pf/vlan.pm line 138. (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:29 pfsetvlan(1) ERROR: Use of uninitialized value $ifType in numeric eq (==) at /usr/local/pf/lib/pf/vlan.pm line 138. (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:29 pfsetvlan(1) INFO: trap received on (10.100.6.30) ifindex which is not ethernetCsmacd (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:29 pfsetvlan(1) INFO: doWeActOnThisTrap returns false. Stop handling (main::handleTrap) Feb 17 19:33:29 pfsetvlan(1) INFO: finished (main::cleanupAfterThread) Feb 17 19:33:39 pfsetvlan(13) WARN: SNMP trap handling not implemented for this type of switch. (pf::Switch::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 670. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string ne at /usr/local/pf/sbin/pfsetvlan line 678. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 689. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 698. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 703. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 703. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 709. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 713. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 716. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in string eq at /usr/local/pf/sbin/pfsetvlan line 719. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $switch_port in concatenation (.) or string at /usr/local/pf/sbin/pfsetvlan line 729. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(13) ERROR: Use of uninitialized value $trapType in concatenation (.) or string at /usr/local/pf/sbin/pfsetvlan line 729. (main::parseTrap) Feb 17 19:33:39 pfsetvlan(3) WARN: unable to parse trapLine.. here's the line: 10.100.6.30||||||||| (main::startTrapHandlers) Feb 17 19:33:39 pfsetvlan(3) INFO: nb of items in queue: 1; nb of threads running: 0 (main::startTrapHandlers) Feb 17 19:33:39 pfsetvlan(3) ERROR: Use of uninitialized value $ifType in numeric eq (==) at /usr/local/pf/lib/pf/vlan.pm line 138. (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:39 pfsetvlan(3) ERROR: Use of uninitialized value $ifType in numeric eq (==) at /usr/local/pf/lib/pf/vlan.pm line 138. (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:39 pfsetvlan(3) INFO: trap received on (10.100.6.30) ifindex which is not ethernetCsmacd (pf::vlan::doWeActOnThisTrap) Feb 17 19:33:39 pfsetvlan(3) INFO: doWeActOnThisTrap returns false. Stop handling (main::handleTrap) Feb 17 19:33:39 pfsetvlan(3) INFO: finished (main::cleanupAfterThread) For reference, here is the up trap it received: 2015-02-17|03:41:46|UDP: [10.100.6.30]:33669->[10.100.16.108]|0.0.0.0|BEGIN TYPE 0 END TYPE BEGIN SUBTYPE 0 END SUBTYPE BEGIN VARIABLEBINDINGS .1.3.6.1.2.1.1.3.0 = Timeticks: (661683) 1:50:16.83|.1.3.6.1.6.3.1.1.4.1.0 = OID: .1.3.6.1.6.3.1.1.5.4|.1.3.6.1.2.1.2.2.1.1.1 = INTEGER: 1|.1.3.6.1.2.1.2.2.1.7.1 = INTEGER: up(1)|.1.3.6.1.2.1.2.2.1.8.1 = INTEGER: up(1) END VARIABLEBINDINGS and the down trap: 2015-02-17|03:42:30|UDP: [10.100.6.30]:33669->[10.100.16.108]|0.0.0.0|BEGIN TYPE 0 END TYPE BEGIN SUBTYPE 0 END SUBTYPE BEGIN VARIABLEBINDINGS .1.3.6.1.2.1.1.3.0 = Timeticks: (666103) 1:51:01.03|.1.3.6.1.6.3.1.1.4.1.0 = OID: .1.3.6.1.6.3.1.1.5.3|.1.3.6.1.2.1.2.2.1.1.1 = INTEGER: 1|.1.3.6.1.2.1.2.2.1.7.1 = INTEGER: up(1)|.1.3.6.1.2.1.2.2.1.8.1 = INTEGER: down(2) END VARIABLEBINDINGS These were both when working on port 1 | ||||||||||
| Steps To Reproduce | -Enable link up/down traps on switch -Plug/unplug device from port | ||||||||||

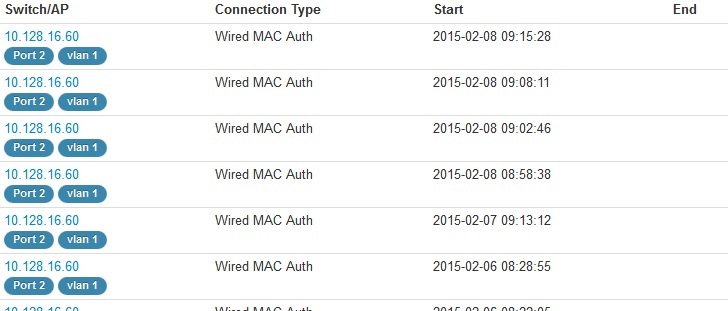

| Additional Information | This is also affecting the ability to use the location log and delete old devices on M-Series devices never close out the line for locations and show offline. I've attached an image of what the location log looks like for this in the web interface. | ||||||||||
| Tags | No tags attached. | ||||||||||
| fixed in git revision | |||||||||||
| fixed in mtn revision | |||||||||||
| Attached Files |  locationlog.jpg [^] (62,948 bytes) 2015-02-17 22:47
| ||||||||||
 Relationships |
|
 Relationships |
|
Notes |
|
|
(0003845) fdurand (administrator) 2015-02-18 10:24 edited on: 2015-02-18 10:24 |
Hello, can you add: =item parseTrap =cut sub parseTrap { my ( $this, $trapString ) = @_; my $logger = Log::Log4perl::get_logger(__PACKAGE__); my $trapHashRef; # link up/down traps if ( $trapString =~ /BEGIN\ VARIABLEBINDINGS\ [^|]+[|]\. 1\.3\.6\.1\.6\.3\.1\.1\.4\.1\.0 # SNMP notification \ =\ OID:\ \. 1\.3\.6\.1\.6\.3\.1\.1\.5\.([34]) # link UP(4) DOWN(3) trap \|\.1\.3\.6\.1\.2\.1\.2\.2\.1\.1\.([0-9]+) # ifIndex /x ) { $trapHashRef->{'trapType'} = ( ( $1 == 3 ) ? "down" : "up" ); $trapHashRef->{'trapIfIndex'} = $2; } # unhandled traps else { $logger->debug("trap currently not handled"); $trapHashRef->{'trapType'} = 'unknown'; } return $trapHashRef; } in /usr/local/pf/lib/pf/Switch/Netgear/MSeries.pm and restart pfsetvlan ? Regards Fabrice |
|
Notes |
|
Issue History |
|||
| Date Modified | Username | Field | Change |
| 2015-02-17 22:47 | ah27 | New Issue | |
| 2015-02-17 22:47 | ah27 | File Added: locationlog.jpg | |
| 2015-02-18 07:52 | jsemaan.inverse | Assigned To | => jsemaan.inverse |
| 2015-02-18 07:52 | jsemaan.inverse | Status | new => assigned |
| 2015-02-18 10:24 | fdurand | Note Added: 0003845 | |
| 2015-02-18 10:24 | fdurand | Note Edited: 0003845 | View Revisions |
|
Issue History |
